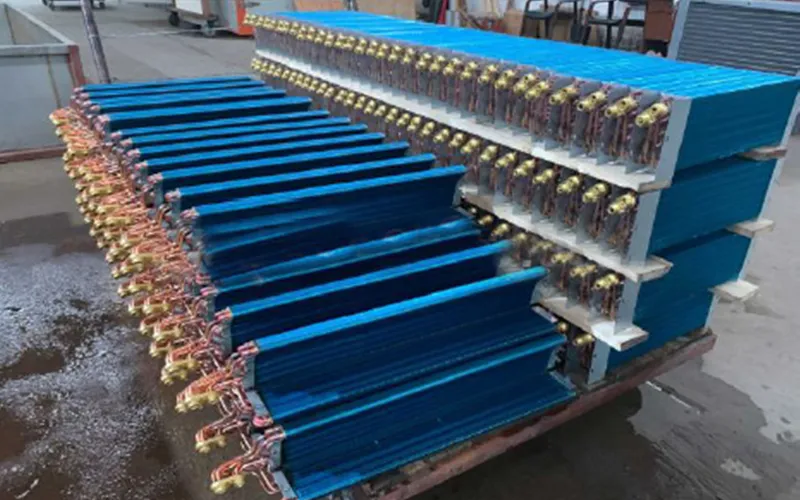

Copper Tube Aluminum Fin Condenser Coil for Chest Freezer

MOQ : 200

Price : 20

Copper Pipe Diameter : Φ7, Φ7.94, Φ9.52

Tube Type : Inner grooved or smooth tube

Aluminum Foil Type : Hydrophilic or bare

Fin Type : Louver fin, flat fin, corrugated fin

Fin Pitch : Ø7 1.1~1.8mm, Ø7.94 1.4~2.0mm, Ø9.52 1.4~2.3mm

Hole Pitch : 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm

Tube Diameter Range : Φ7 to Φ15.88

Hole/Row Distance : 21*12.7mm to 38.1*33mm

Fin Space Range : 1.3mm to 6.35mm

Fin Style Options : Louvered fin, Plain fin, Sine wave fin, Corrugated fin, V ripple fin

Material Composition : Copper, aluminum, galvanized plate

Production Capacity : 10000 Pieces/Year

Principle : Regenerative Heat Exchanger

Style : Steel Type

Model Number : sail-44

Contact Now

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5
